Swiss-type Lathes MANURHIN K’MX 732 EVO

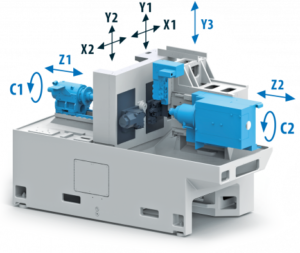

MANURHIN K’MX 732 EVO – is designed for productive machining of parts for bars with a maximum diameter of 32 mm. The machine comes standard with two electro spindles and with a rotary guide bush synchronized by pulleys and belts from the main spindle. Seven linear CNC axes (X1, X2, Y1, Y2, Y3, Z1, Z2) and two rotary axes (C1, C2) enable the machine to produce parts ranging from very simple to extremely complex. The construction solution and very strong spindle motor enables the use of up to 3 tools at the same time. The machine is very strong when milling, with torque up to 32Nm!
Big advantage of this model is possibility of parallel turning or milling with two tools at the same time. Optionally the machine can be equipped with motorized tools on both of rear or front tool rack. The stroke of the main spindle enables to use the machine for turning of shafts up to 400 mm on one clamping. MANURHIN K’MX 732 EVO is typically delivered with automatic bar feeder with encoder and magazine for 3m bars. The parts over 170 mm long are possible to be evacuated from the machine only through the counter spindle. The maximum length of the part is limited theoretically only by the length of the bar. The easy setup of tools on tool rack enables the successful use of this machine for the batches starting by hundreds of pieces.

• Max bar ⌀ 32mm or ⌀36 mm
• Live tools power 2,3 kW
• Number of tools in cut: 3
• Main spindle power 15/25 kW
• Hercules among swiss lathes!
